Perforerte plater
Perforerte plater, også kjent som hullplater, er både funksjonelle og dekorative, med et bredt spekter av bruksområder. De brukes i alt fra ventilasjonssystemer og filterløsninger til fasader, solskjerming og interiør. I tillegg har de en viktig funksjon som filtermedium i prosesser der luft, olje, vann eller andre væsker må filtreres – noe som gjør dem godt egnet i kjemiindustrien og andre bransjer med høye krav til presisjon.

Lagerførte størrelser
Artikkelnr. | Format | Tykkelse | Hulldeling | Materialtype | % (lysåpning) | kg/stk | Send forespørsel |
|---|---|---|---|---|---|---|---|
| 01.00010 | 1000 x 2000 mm | 0.80 mm | Rv 1.1-2 | Rustfritt AISI 316 | 27.4 | 9.4 | Send forespørsel |
| 01.00012 | 1000 x 2000 mm | 1.00 mm | Rv 1.5-2.5 | Rustfritt AISI 316 | 32.7 | 10.7 | Send forespørsel |
| 01.00013 | 1000 x 2000 mm | 1.00 mm | Rv 2-3.5 | Rustfritt AISI 316 | 29.6 | 11.2 | Send forespørsel |
| 01.00014 | 1000 x 2000 mm | 1.50 mm | Rv 2-3.5 | Rustfritt AISI 316 | 29.6 | 16.8 | Send forespørsel |
| 01.00015 | 1000 x 2000 mm | 1.00 mm | Rv 3-5 | Rustfritt AISI 316 | 32.7 | 10.9 | Send forespørsel |
| 01.00016 | 1000 x 2000 mm | 1.50 mm | Rv 3-5 | Rustfritt AISI 316 | 32.7 | 16.3 | Send forespørsel |
| 01.00017 | 1000 x 2000 mm | 2.00 mm | Rv 3-5 | Rustfritt AISI 316 | 32.7 | 21.5 | Send forespørsel |
| 01.00018 | 1000 x 2000 mm | 1.00 mm | Rv 4-6 | Rustfritt AISI 316 | 40.3 | 9.6 | Send forespørsel |
| 01.00019 | 1000 x 2000 mm | 1.50 mm | Rv 4-6 | Rustfritt AISI 316 | 40.3 | 14.4 | Send forespørsel |
| 01.00020 | 1000 x 2000 mm | 1.00 mm | Rv 5-8 | Rustfritt AISI 316 | 35.4 | 10.4 | Send forespørsel |
| 01.00021 | 1000 x 2000 mm | 1.50 mm | Rv 5-8 | Rustfritt AISI 316 | 35.4 | 15.5 | Send forespørsel |
| 01.00022 | 1000 x 2000 mm | 2.00 mm | Rv 5-8 | Rustfritt AISI 316 | 35.4 | 20.7 | Send forespørsel |
| 01.00024 | 1000 x 2000 mm | 1.50 mm | Rv 6-9 | Rustfritt AISI 316 | 40.3 | 14.4 | Send forespørsel |
| 01.00025 | 1000 x 2000 mm | 1.00 mm | Rv 8-12 | Rustfritt AISI 316 | 40.3 | 9.6 | Send forespørsel |
| 01.00026 | 1000 x 2000 mm | 1.50 mm | Rv 8-12 | Rustfritt AISI 316 | 40.3 | 14.4 | Send forespørsel |
| 01.00027 | 1000 x 2000 mm | 2.00 mm | Rv 8-12 | Rustfritt AISI 316 | 40.3 | 19.2 | Send forespørsel |
| 01.00028 | 1000 x 2000 mm | 1.00 mm | Rv 10-15 | Rustfritt AISI 316 | 40.3 | 9.5 | Send forespørsel |
| 01.00029 | 1000 x 2000 mm | 1.50 mm | Rv 10-15 | Rustfritt AISI 316 | 40.3 | 14.3 | Send forespørsel |
| 01.00030 | 1000 x 2000 mm | 2.00 mm | Rv 10-15 | Rustfritt AISI 316 | 40.3 | 19.1 | Send forespørsel |
| 01.00031 | 1000 x 2000 mm | 3.00 mm | Rv 10-15 | Rustfritt AISI 316 | 40.3 | 28.7 | Send forespørsel |
| 01.00033 | 1250 x 2500 mm | 1.00 mm | Rv 3-5 | Rustfritt AISI 316 | 32.7 | 16.8 | Send forespørsel |
| 01.00035 | 1250 x 2500 mm | 1.00 mm | Rv 5-8 | Rustfritt AISI 316 | 35.4 | 16.3 | Send forespørsel |
| 01.00036 | 1250 x 2500 mm | 1.50 mm | Rv 5-8 | Rustfritt AISI 316 | 35.4 | 24.4 | Send forespørsel |
| 01.00037 | 1250 x 2500 mm | 2.00 mm | Rv 5-8 | Rustfritt AISI 316 | 35.4 | 32.5 | Send forespørsel |
| 01.00042 | 1000 x 2000 mm | 1.50 mm | Rv 2-3.5 | Syrefast AISI 316 | 29.6 | 17 | Send forespørsel |
| 01.00043 | 1000 x 2000 mm | 1.00 mm | Rv 3-5 | Syrefast AISI 316 | 32.7 | 10.7 | Send forespørsel |
| 01.00044 | 1000 x 2000 mm | 1.50 mm | Rv 3-5 | Syrefast AISI 316 | 32.7 | 16.1 | Send forespørsel |
| 01.00046 | 1000 x 2000 mm | 1.00 mm | Rv 5-8 | Syrefast AISI 316 | 35.4 | 10.3 | Send forespørsel |
| 01.00047 | 1000 x 2000 mm | 1.50 mm | Rv 5-8 | Syrefast AISI 316 | 35.4 | 15.5 | Send forespørsel |
| 01.00048 | 1000 x 2000 mm | 2.00 mm | Rv 5-8 | Syrefast AISI 316 | 35.4 | 20.8 | Send forespørsel |
| 01.00049 | 1000 x 2000 mm | 3.00 mm | Rv 5-8 | Syrefast AISI 316 | 35.4 | 31.2 | Send forespørsel |
| 01.00050 | 1000 x 2000 mm | 2.00 mm | Rv 10-15 | Syrefast AISI 316 | 40.3 | 19.2 | Send forespørsel |
| 01.00096 | 1000 x 2000 mm | 1.00 mm | Rv 1.5-2.5 | Stål | 32.7 | 10.7 | Send forespørsel |
| 01.00099 | 1000 x 2000 mm | 1.00 mm | Rv 2-3.5 | Stål | 29.6 | 11.3 | Send forespørsel |
| 01.00100 | 1000 x 2000 mm | 1.50 mm | Rv 2-3.5 | Stål | 29.6 | 16.9 | Send forespørsel |
| 01.00101 | 1000 x 2000 mm | 2.00 mm | Rv 2-3.5 | Stål | 29.6 | 22.5 | Send forespørsel |
| 01.00105 | 1000 x 2000 mm | 1.00 mm | Rv 3-4 | Stål | 51 | 8 | Send forespørsel |
| 01.00107 | 1000 x 2000 mm | 1.00 mm | Rv 3-5 | Stål | 32.7 | 10.7 | Send forespørsel |
| 01.00108 | 1000 x 2000 mm | 1.50 mm | Rv 3-5 | Stål | 32.7 | 16.1 | Send forespørsel |
| 01.00109 | 1000 x 2000 mm | 2.00 mm | Rv 3-5 | Stål | 32.7 | 21.5 | Send forespørsel |
| 01.00110 | 1000 x 2000 mm | 3.00 mm | Rv 3-5 | Stål | 32.7 | 32.2 | Send forespørsel |
| 01.00114 | 1000 x 2000 mm | 1.00 mm | Rv 4-6 | Stål | 40.3 | 9.6 | Send forespørsel |
| 01.00115 | 1000 x 2000 mm | 1.50 mm | Rv 4-6 | Stål | 40.3 | 14.5 | Send forespørsel |
| 01.00116 | 1000 x 2000 mm | 2.00 mm | Rv 4-6 | Stål | 40.3 | 22.5 | Send forespørsel |
| 01.00123 | 1000 x 2000 mm | 1.00 mm | Rv 5-8 | Stål | 35.4 | 10.3 | Send forespørsel |
| 01.00124 | 1000 x 2000 mm | 1.50 mm | Rv 5-8 | Stål | 35.4 | 15.5 | Send forespørsel |
| 01.00125 | 1000 x 2000 mm | 2.00 mm | Rv 5-8 | Stål | 35.4 | 20.7 | Send forespørsel |
| 01.00126 | 1000 x 2000 mm | 3.00 mm | Rv 5-8 | Stål | 35.4 | 31 | Send forespørsel |
| 01.00127 | 1000 x 2000 mm | 5.00 mm | Rv 5-9 | Stål | 28 | 52 | Send forespørsel |
| 01.00128 | 1000 x 2000 mm | 1.00 mm | Rv 6-9 | Stål | 40.3 | 9.6 | Send forespørsel |
| 01.00130 | 1000 x 2000 mm | 2.00 mm | Rv 6-9 | Stål | 40.3 | 19.2 | Send forespørsel |
| 01.00131 | 1000 x 2000 mm | 3.00 mm | Rv 6-9 | Stål | 40.3 | 28.8 | Send forespørsel |
| 01.00133 | 1000 x 2000 mm | 1.00 mm | Rv 8-10 | Stål | 58 | 6.7 | Send forespørsel |
| 01.00134 | 1000 x 2000 mm | 1.00 mm | Rv 8-12 | Stål | 40.3 | 9.6 | Send forespørsel |
| 01.00135 | 1000 x 2000 mm | 1.50 mm | Rv 8-12 | Stål | 40.3 | 14.4 | Send forespørsel |
| 01.00136 | 1000 x 2000 mm | 2.00 mm | Rv 8-12 | Stål | 40.3 | 19.2 | Send forespørsel |
| 01.00137 | 1000 x 2000 mm | 3.00 mm | Rv 8-12 | Stål | 40.3 | 28.8 | Send forespørsel |
| 01.00138 | 1000 x 2000 mm | 4.00 mm | Rv 8-12 | Stål | 40.3 | 38.4 | Send forespørsel |
| 01.00139 | 1000 x 2000 mm | 6.00 mm | Rv 8-16 | Stål | 74 | Send forespørsel | |
| 01.00140 | 1000 x 2000 mm | 1.00 mm | Rv 10-14 | Stål | 46.3 | 8.7 | Send forespørsel |
| 01.00141 | 1000 x 2000 mm | 1.50 mm | Rv 10-14 | Stål | 46.3 | 13 | Send forespørsel |
| 01.00145 | 1000 x 2000 mm | 2.00 mm | Rv 10-15 | Stål | 40.3 | 19.2 | Send forespørsel |
| 01.00146 | 1000 x 2000 mm | 3.00 mm | Rv 10-15 | Stål | 40.3 | 28.7 | Send forespørsel |
| 01.00147 | 1000 x 2000 mm | 5.00 mm | Rv 10-15 | Stål | 40.3 | 48 | Send forespørsel |
| 01.00148 | 1000 x 2000 mm | 8.00 mm | Rv 10-18 | Stål | 28 | 83 | Send forespørsel |
| 01.00152 | 1000 x 2000 mm | 3.00 mm | Rv 12-16 | Stål | 51 | 23.5 | Send forespørsel |
| 01.00153 | 1000 x 2000 mm | 1.50 mm | Rv 15-21 | Stål | 46.3 | 13 | Send forespørsel |
| 01.00155 | 1000 x 2000 mm | 3.00 mm | Rv 15-21 | Stål | 46.3 | 25.9 | Send forespørsel |
| 01.00157 | 1000 x 2000 mm | 1.50 mm | Rv 20-28 | Stål | 46.3 | 13 | Send forespørsel |
| 01.00172 | 1250 x 2500 mm | 1.00 mm | Rv 3-5 | Stål | 32.7 | 16.8 | Send forespørsel |
| 01.00173 | 1250 x 2500 mm | 1.50 mm | Rv 3-5 | Stål | 32.7 | 25.1 | Send forespørsel |
| 01.00175 | 1250 x 2500 mm | 1.00 mm | Rv 5-8 | Stål | 35.4 | 16.3 | Send forespørsel |
| 01.00176 | 1250 x 2500 mm | 1.50 mm | Rv 5-8 | Stål | 35.4 | 24.4 | Send forespørsel |
| 01.00177 | 1250 x 2500 mm | 2.00 mm | Rv 5-8 | Stål | 35.4 | 32.4 | Send forespørsel |
| 01.00204 | 1000 x 2000 mm | 1.00 mm | Rv 1.5-2.5 | Aluminium kval. 99,5 | 32.7 | 3.8 | Send forespørsel |
| 01.00205 | 1000 x 2000 mm | 1.00 mm | Rv 2-3.5 | Aluminium kval. 99,5 | 29.6 | 3.8 | Send forespørsel |
| 01.00208 | 1000 x 2000 mm | 1.00 mm | Rv 3-5 | Aluminium kval. 99,5 | 32.7 | 3.6 | Send forespørsel |
| 01.00209 | 1000 x 2000 mm | 1.50 mm | Rv 3-5 | Aluminium kval. 99,5 | 32.7 | 5.4 | Send forespørsel |
| 01.00211 | 1000 x 2000 mm | 1.00 mm | Rv 4-6 | Aluminium kval. 99,5 | 40.3 | 3.4 | Send forespørsel |
| 01.00214 | 1000 x 2000 mm | 1.00 mm | Rv 5-8 | Aluminium kval. 99,5 | 35.4 | 3.5 | Send forespørsel |
| 01.00215 | 1000 x 2000 mm | 1.50 mm | Rv 5-8 | Aluminium kval. 99,5 | 35.4 | 5.3 | Send forespørsel |
| 01.00216 | 1000 x 2000 mm | 2.00 mm | Rv 5-8 | Aluminium kval. 99,5 | 35.4 | 7 | Send forespørsel |
| 01.00217 | 1000 x 2000 mm | 3.00 mm | Rv 5-8 | Aluminium kval. 99,5 | 35.4 | 10.5 | Send forespørsel |
| 01.00223 | 1000 x 2000 mm | 2.00 mm | Rv 8-12 | Aluminium kval. 99,5 | 40.3 | 6.4 | Send forespørsel |
| 01.00224 | 1000 x 2000 mm | 1.00 mm | Rv 10-15 | Aluminium kval. 99,5 | 40.3 | 3.2 | Send forespørsel |
| 01.00228 | 1250 x 2500 mm | 1.00 mm | Rv 5-8 | Aluminium kval. 99,5 | 35.4 | 5.4 | Send forespørsel |
| 01.00257 | 1000 x 2000 mm | 1.00 mm | Rv 1.5-2.5 | Sendzimirgalvanisert | 32.7 | 10.4 | Send forespørsel |
| 01.00258 | 1000 x 2000 mm | 1.00 mm | Rv 2-3.5 | Sendzimirgalvanisert | 29.6 | 11.2 | Send forespørsel |
| 01.00259 | 1000 x 2000 mm | 0.70 mm | Rv 3-5 | Sendzimirgalvanisert | 32.7 | 7.5 | Send forespørsel |
| 01.00260 | 1000 x 2000 mm | 1.00 mm | Rv 3-5 | Sendzimirgalvanisert | 32.7 | 10.7 | Send forespørsel |
| 01.00261 | 1000 x 2000 mm | 1.50 mm | Rv 3-5 | Sendzimirgalvanisert | 32.7 | 16 | Send forespørsel |
| 01.00263 | 1000 x 2000 mm | 1.00 mm | Rv 4-6 | Sendzimirgalvanisert | 40.3 | 9.6 | Send forespørsel |
| 01.00265 | 1000 x 2000 mm | 0.70 mm | Rv 5-8 | Sendzimirgalvanisert | 35.4 | 7.3 | Send forespørsel |
| 01.00266 | 1000 x 2000 mm | 1.00 mm | Rv 5-8 | Sendzimirgalvanisert | 35.4 | 10.3 | Send forespørsel |
| 01.00267 | 1000 x 2000 mm | 1.50 mm | Rv 5-8 | Sendzimirgalvanisert | 35.4 | 15.6 | Send forespørsel |
| 01.00268 | 1000 x 2000 mm | 2.00 mm | Rv 5-8 | Sendzimirgalvanisert | 35.4 | 20.8 | Send forespørsel |
| 01.00270 | 1000 x 2000 mm | 0.70 mm | Rv 8-10 | Sendzimirgalvanisert | 58 | 4.7 | Send forespørsel |
| 01.00273 | 1000 x 2000 mm | 1.00 mm | Rv 10-15 | Sendzimirgalvanisert | 40.3 | 8.6 | Send forespørsel |
| 01.00274 | 1000 x 2000 mm | 1.50 mm | Rv 10-14 | Sendzimirgalvanisert | 46.3 | 14.4 | Send forespørsel |
| 01.00280 | 1250 x 2500 mm | 0.70 mm | Rv 3-5 | Sendzimirgalvanisert | 32.7 | 12.7 | Send forespørsel |
| 01.00281 | 1250 x 2500 mm | 1.00 mm | Rv 3-5 | Sendzimirgalvanisert | 32.7 | 17 | Send forespørsel |
| 01.00284 | 1250 x 2500 mm | 0.70 mm | Rv 5-8 | Sendzimirgalvanisert | 35.4 | 11.4 | Send forespørsel |
| 01.00285 | 1250 x 2500 mm | 1.00 mm | Rv 5-8 | Sendzimirgalvanisert | 35.4 | 16.3 | Send forespørsel |
| 01.00415 | 1000 x 2000 mm | 1.00 mm | Rv 6-8 | Rustfritt AISI 316 | 51 | 7.9 | Send forespørsel |
| 01.00449 | 1000 x 2000 mm | 2.00 mm | Rv 20-28 | Rustfritt AISI 316 | 46.3 | 17 | Send forespørsel |
| 01.00542 | 1250 x 2500 mm | 2.00 mm | Rv 8-12 | Stål | 40.3 | 30 | Send forespørsel |
| 01.00659 | 1250 x 2500 mm | 1.50 mm | Rv 8-12 | Stål | 40.3 | 22.5 | Send forespørsel |
| 01.00965 | 1000 x 2000 mm | 0.80 mm | Rv 3-4 | Aluminium kval. 99,5 | 51 | 2.2 | Send forespørsel |
| 01.01052 | 1000 x 2000 mm | 3.00 mm | Rv 5-8 | Rustfritt AISI 316 | 35.4 | 31.2 | Send forespørsel |
| 01.01060 | 1000 x 2000 mm | 3.00 mm | Rv 8-12 | Rustfritt AISI 316 | 40.3 | 28.8 | Send forespørsel |
| 01.01106 | 1000 x 2000 mm | 0.50 mm | Rv 3-5 | Stål | 32.7 | 5.3 | Send forespørsel |
| 01.01278 | 1000 x 2000 mm | 1.00 mm | Rv 8-10 | Rustfritt AISI 316 | 58 | 6.7 | Send forespørsel |
| 01.01665 | 1000 x 2000 mm | 0.50 mm | Rv 3-5 | Rustfritt AISI 316 | 32.7 | 5.4 | Send forespørsel |
| 01.03424 | 1000 x 2000 mm | 4.00 mm | Rv 5-8 | Stål | 35.4 | 41.6 | Send forespørsel |
| 50081 | 1000 x 2000 mm | 6.00 mm | Rv 8-14 | Stål | 30 | 57.6 | Send forespørsel |
| 50091 | 1000 x 2000 mm | 8.00 mm | Rv 8-15 | Stål | 22.7 | 93 | Send forespørsel |
| 51381 | 1000 x 2000 mm | 0.70 mm | Rv 3-5 | Syrefast AISI 316 | 32.7 | 7.5 | Send forespørsel |
Ta kontakt med oss
Send oss en uforpliktende forespørsel og få et godt tilbud på produktene du trenger til din bedrift
Perforerte plater for industri, ventilasjon og interiør
Perforerte plater, også kjent som hullplater, er både funksjonelle og dekorative, med et bredt spekter av bruksområder. De brukes i alt fra ventilasjonssystemer og filterløsninger til fasader, solskjerming og interiør. I tillegg har de en viktig funksjon som filtermedium i prosesser der luft, olje, vann eller andre væsker må filtreres – noe som gjør dem godt egnet i kjemiindustrien og andre bransjer med høye krav til presisjon.
Bredt utvalg og faglig rådgivning for perforerte plater
Hos Burmeister AS finner du et stort utvalg av perforerte metallplater i stål, aluminium, rustfritt og galvanisert stål. Trenger du hjelp? Vi tilbyr blant annet teknisk rådgivning, prosjektering og montering slik at du får riktig materiale, format og løsning tilpasset prosjektet ditt.
Allsidig bruksområder

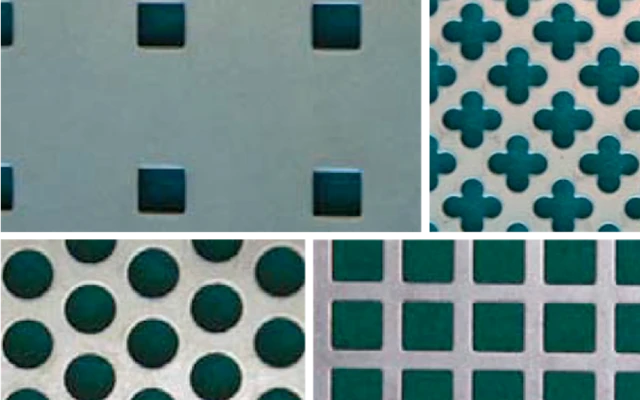

Perforerte plater produseres ved at metallplaten stanses med et mønster av hull, som kan variere i størrelse, form og plassering. Dette gir et sterkt og slitesterkt produkt med mange bruksområder, blant annet:

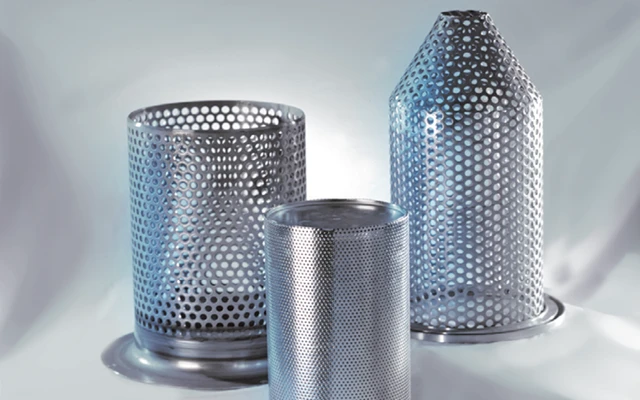

- Perforert stålplate - til ventilasjon, filtrering og støydemping

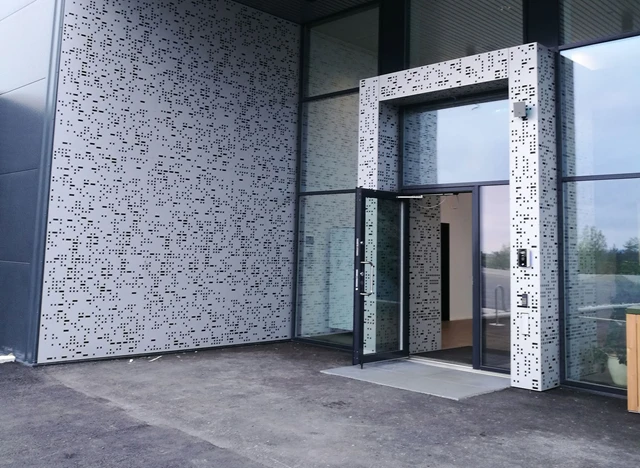

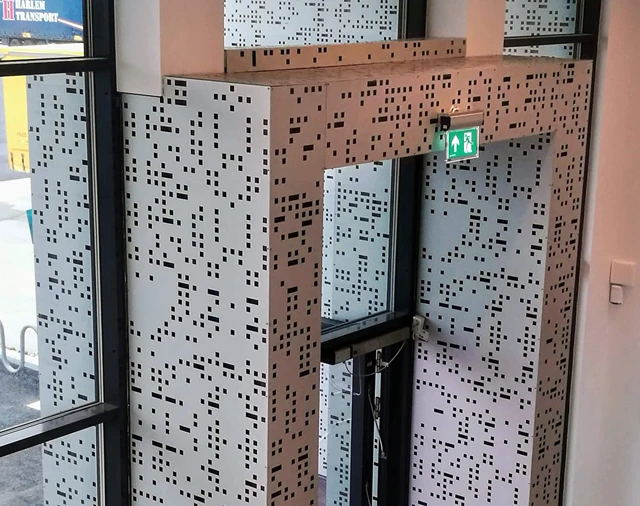

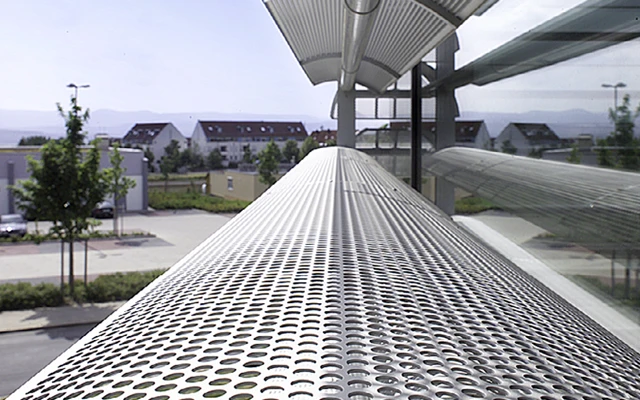

- Perforert plate i aluminium - til fasader, solskjerming og dekor
- Perforert plate i rustfritt stål - til hygieniske miljøer og krevende forhold
Med et bredt utvalg av perforeringsmønstre og materialer kan du velge en løsning som både oppfyller funksjonskrav og gir ønsket estetikk.
Tilpassede løsninger for ditt behov
Vi leverer både standardplater og skreddersydde perforerte plater. Vi kan hjelpe deg med prosjektering, materialvalg og måltilpasning, slik at du får en løsning tilpasset kravene for prosjektet ditt, enten det gjelder industri, bygg og arkitektur.
Holdbarhet og kvalitet
Våre perforerte plater produseres i slitesterke materialer og kan leveres med ulike overflatebehandlinger for beskyttelse mot vær og slitasje. De er utviklet for å tåle norske forhold og brukes både utendørs og innendørs.
Har du noen spørsmål? Ta gjerne kontakt med oss!
Lurer du på hvilken perforert plate som passer best til ditt prosjekt? Kontakt oss for teknisk rådgivning, pristilbud eller bestilling – vi hjelper deg å finne en løsning som kombinerer funksjon, design og kvalitet.
